Aluminium Conductor Steel Reinforced



ACSR 95/15

Introduction

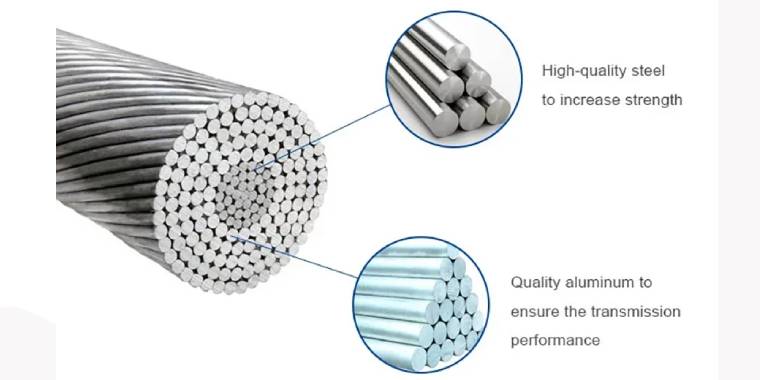

Aluminium Conductor Steel Reinforced is a type of high-capacity, high-strength stranded conductor typically used in overhead power lines. The outer strands are high-purityaluminium, chosen for its excellent conductivity, low weight and low cost. The center strand, or strands is/are of steel for additional strength to help support the weight of the conductor. Steel is higher strength than aluminium which allows for increased mechanical tension to be applied on the conductor. Steel also has lower elastic and inelastic deformation (permanent elongation) due to mechanical loading (e.g. wind and ice) as well as a lower coefficient of thermal expansion under current loading. These properties allow ACSR to sag significantly less than all-aluminium conductors.

Standards implemented

This product is the implementation of GB / T1179-2008 standards,  GB / T1179-2008 is the same as IEC207、IEC209.

Using features

The product is used in the field of overhead power line.

Technical specification of ACSR 95/15 mm2
